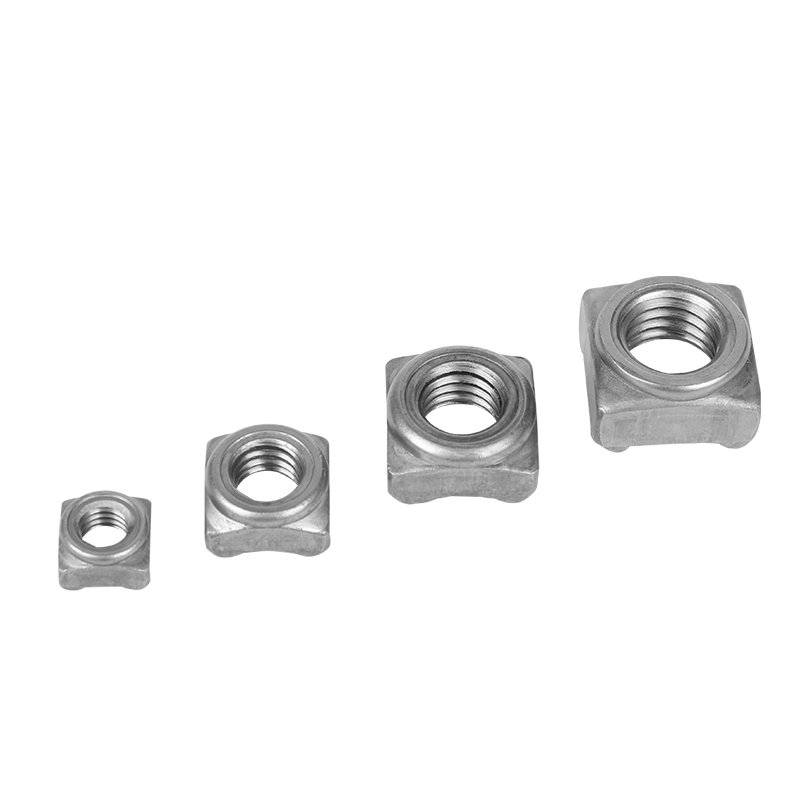

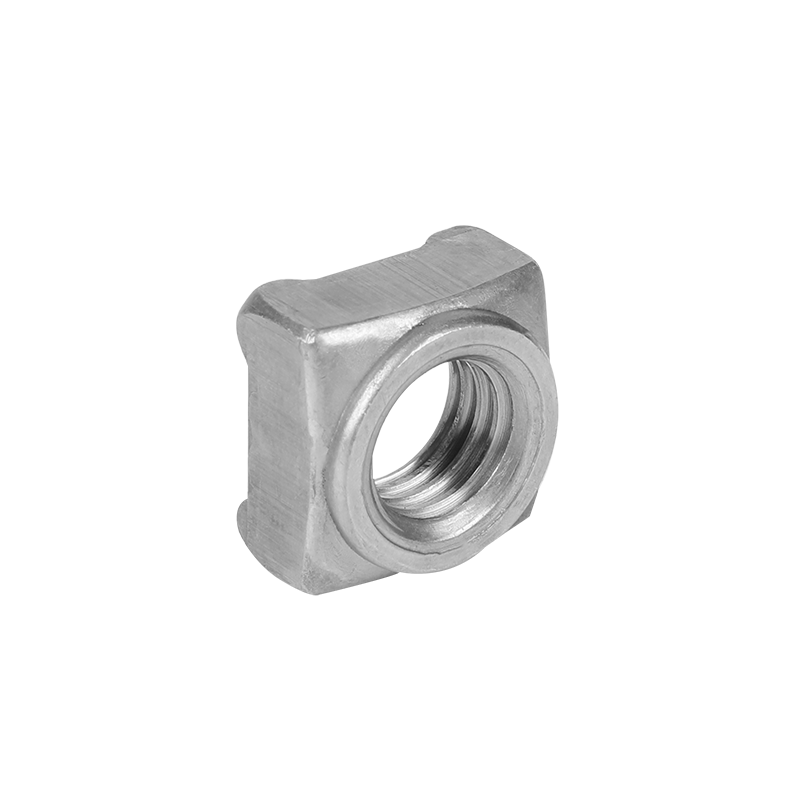

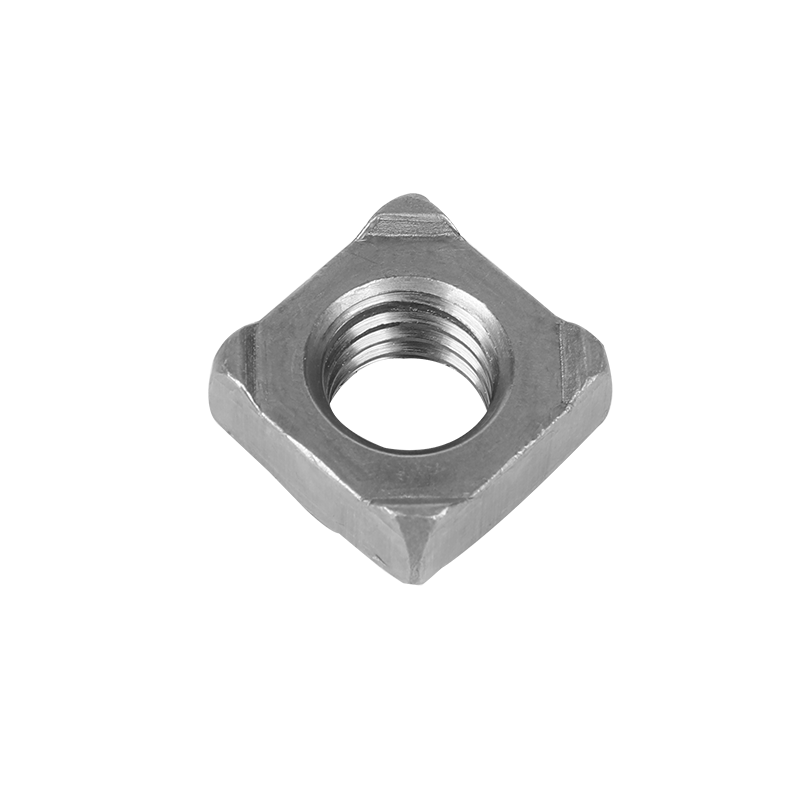

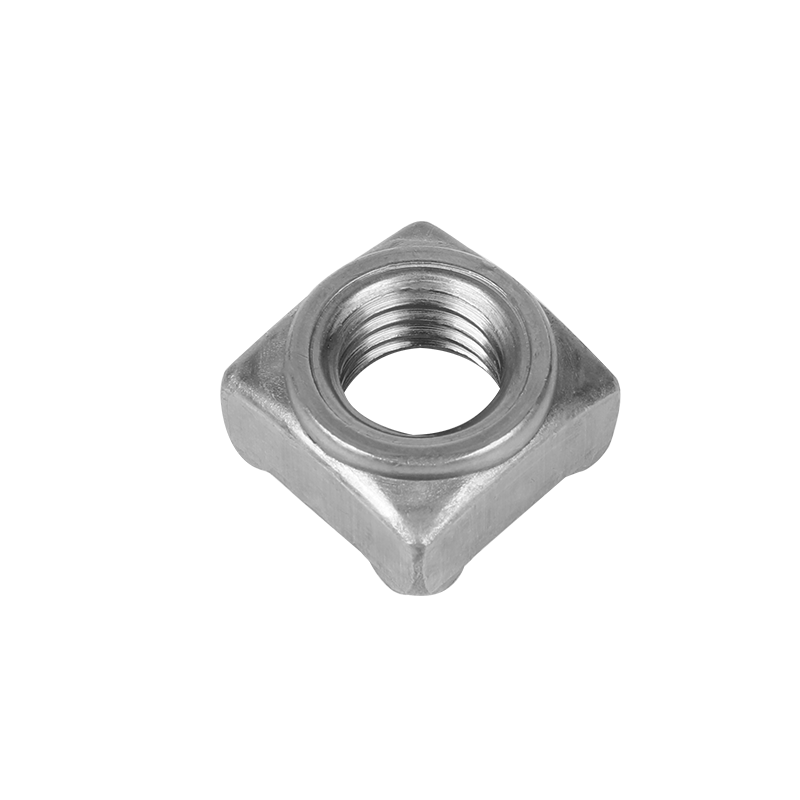

M5-16 DIN 928 DIN Stainless Steel Square Weld Nut

M5-16 DIN 928 stainless steel square weld nut is a high-performance fastener designed for welding applications. It is made of high-quality stainless steel and has excellent corrosion resistance and mechanical strength. It complies with DIN 928 standard, with a thread size of M5, strong welding, and can withstand large tension and torque. It is widely used in industries such as automobile manufacturing, mechanical equipment, construction engineering, rail transportation and electrical equipment, especially for welding occasions that require high strength and long-term durability. The stainless steel material makes it perform well in harsh environments and is suitable for special fields such as marine engineering.

Main parameters
Specification model: M5-16
Standard: DIN 928
Material: Stainless steel (A2 or A4, which can be selected according to customer needs)
Thread size: M5
Thread type: Metric standard thread
Thread pitch: 0.8mm
Length across flats: 8mm
Height: 6mm

Surface treatment: Usually uncoated stainless steel color, but anti-corrosion or other special surface treatments (such as galvanizing, nickel plating, etc.) can be provided according to requirements.
Welding performance: Suitable for welding with a variety of metal materials, with good welding performance and strength.
Tensile strength: Meets the strength requirements of stainless steel in accordance with DIN standards and has good corrosion resistance.

Product features
Corrosion resistance: Made of high-quality stainless steel, it has excellent corrosion resistance and is suitable for use in humid and harsh environments.
High strength: It has excellent mechanical properties and can withstand large tensile and torque loads.
Strong weldability: Specially designed for welding processes, with strong welding and high-strength bonding.
High dimensional accuracy: Manufactured according to DIN 928 standards to ensure precise dimensions and good assembly performance.

Scope of application/application areas
Automobile manufacturing industry: Square weld nuts are commonly used for body structural parts and chassis components in automobile manufacturing, and can provide strong threaded connections where high-strength fixation is required.

Mechanical equipment manufacturing: Suitable for structural welding and installation in mechanical equipment, which can ensure the firm connection of equipment and withstand large loads.

Construction engineering: Widely used in steel structure welding, such as bridges, building frames and other large buildings, to play a reinforcing role.

Electrical equipment and household appliances: Used for fixing components in electrical equipment and household appliances to ensure product stability and durability.

Rail transit: used in fastening systems in rail transit equipment such as trains and subways to ensure high-strength connection between the track and the vehicle body.

Aerospace and aviation: due to its good strength and corrosion resistance, it can also be used in the aerospace field, especially for fasteners with high welding requirements.

Marine engineering: stainless steel is particularly suitable for equipment and structural fixation in marine environments, such as welding in shipbuilding and port facilities.
